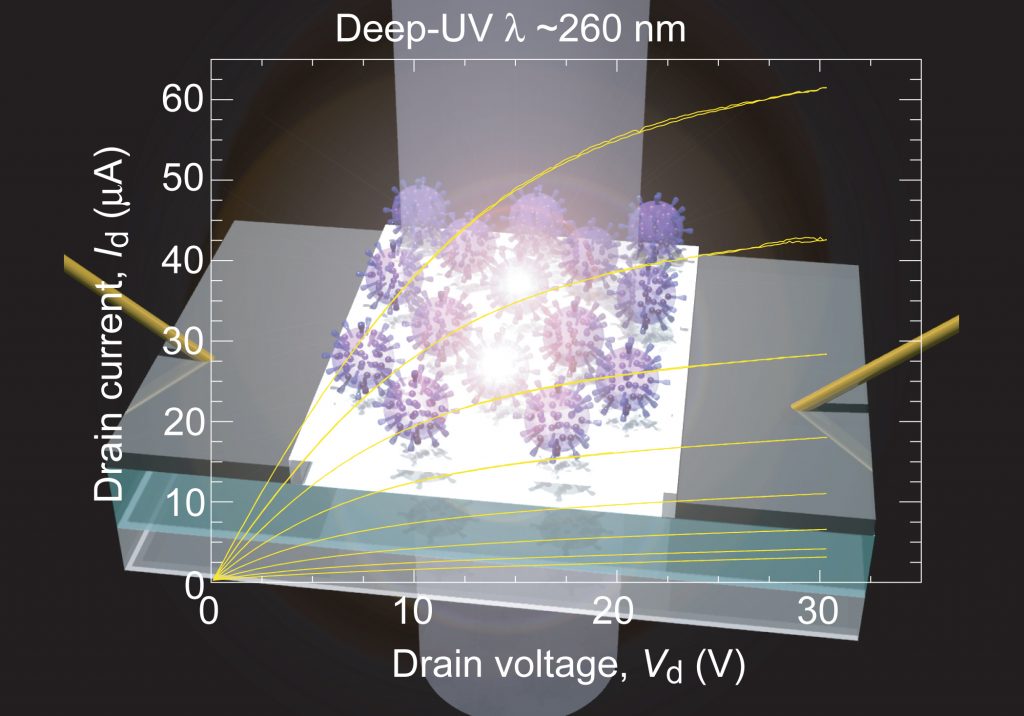

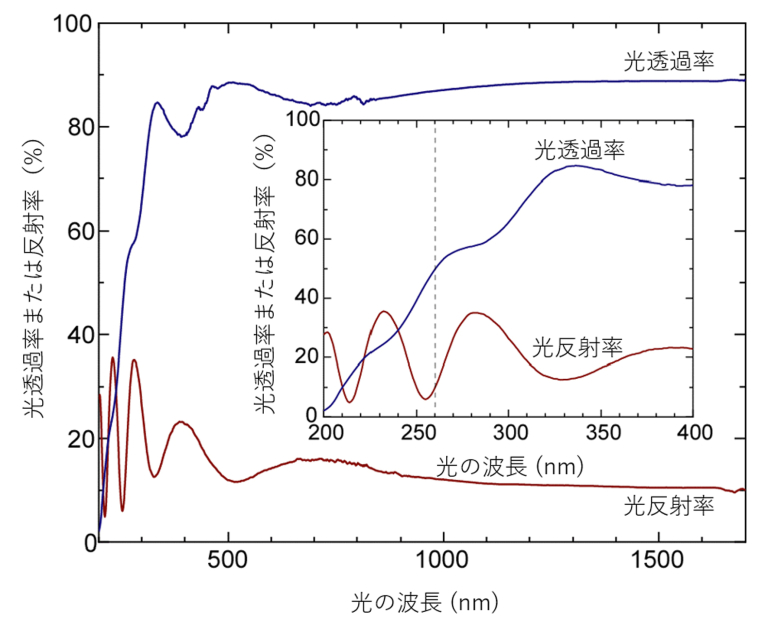

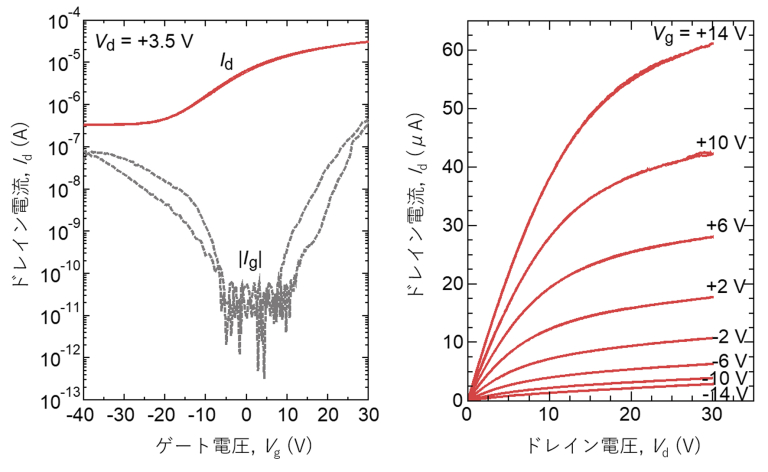

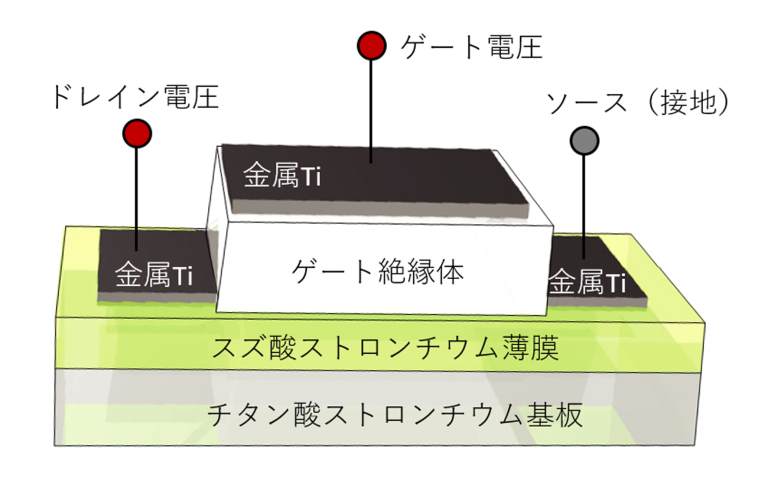

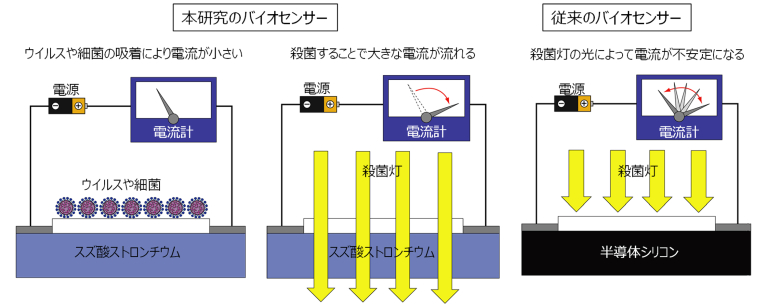

The research group of Professor Hiromichi Ohta from Research Institute for Electronic Science at Hokkaido University has succeeded in demonstrating the transparent transistor that transmits deep ultraviolet. Currently, a semiconducting Si-based transistor is used as a biosensor. However, since the bandgap of Si is only 1.1 eV, the operation becomes unstable when exposed to deep ultraviolet such as a germicidal lamp while the transistor is operating. The research team worked on the development of a thin film transistor using the oxide semiconductor strontium stannate as the active layer, which has a large bandgap of 4.6 eV. Transistors obtained by optimizing the combination of materials not only show clear transistor characteristics but also transmit deep UV light with a wavelength of 260 nm by 50% or more when there are no gate electrodes. The deep-UV transparent transistor would be expected as a prototype of a novel biosensor that operates even when it is exposed to the deep UV of a germicidal lamp.
Original article
Mian Wei, Lizhikun Gong, Dou-dou Liang, Hai Jun Cho*, and Hiromichi Ohta*, “Fabrication and Operating Mechanism of Deep-UV Transparent Semiconducting SrSnO3-based Thin Film Transistor”, Advanced Electronic Materials 202000100 (2020). (DOI: 10.1002/admi.202000100) (June 15, 2020)
Funding information
This research was supported by Grants-in-Aid for Scientific Research A (17H01314) and Innovative Areas (19H05791) from the JSPS. A part of this work was supported by Dynamic Alliance for Open Innovation Bridging Human, Environment, and Materials, and by the Network Joint Research Center for Materials and Devices.
